Streaming Data

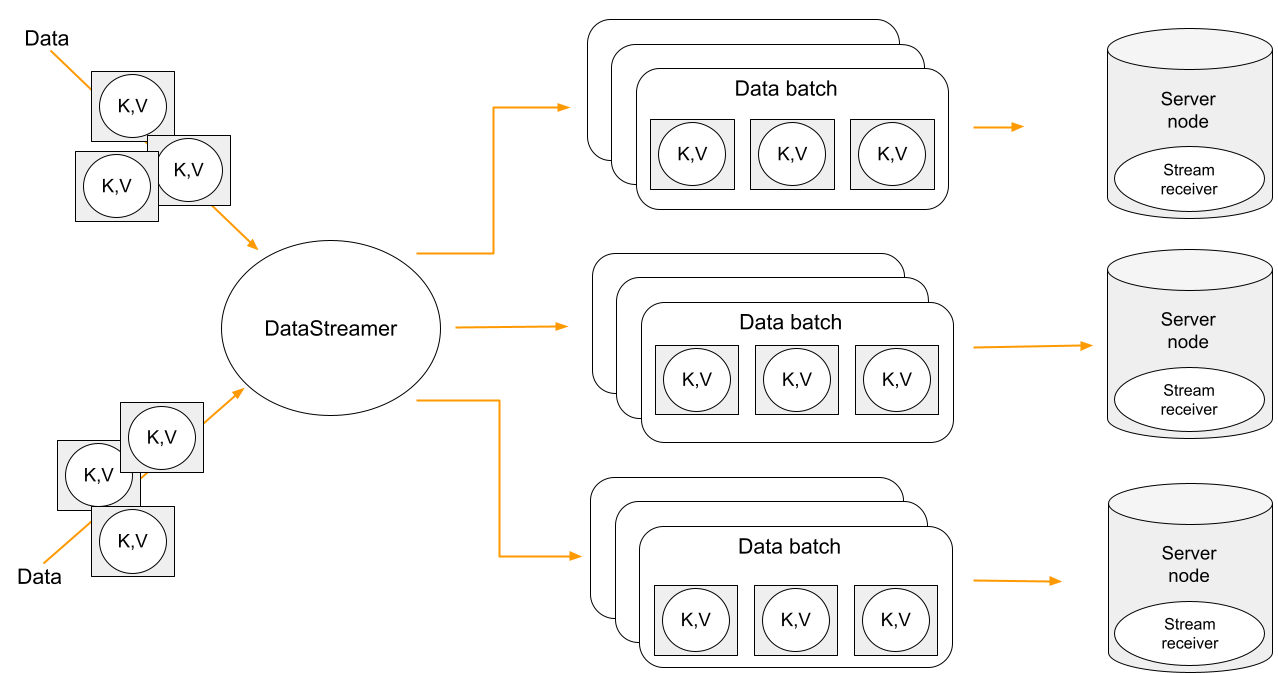

Data streaming provides a fast, efficient method for loading, organizing, and distributing large volumes of data across your cluster. Data streamer accepts a stream of data and distributes data entries across the cluster, where the processing takes place. Data streaming is available in all table views.

Data streaming provides at-least-once delivery guarantee.
Using Data Streamer API
The Data Streamer API lets you load large amounts of data into your cluster quickly and reliably using a publisher–subscriber model, where you create a publisher that streams your data entries to a table view, and the system distributes these entries across the cluster. You can configure how the data is processed via a DataStreamerOptions
object that allows to set batch sizes, auto-flush intervals, retry limits.
Configuring Data Streamer
DataStreamerOptions
lets you fine-tune how data is streamed into your cluster by setting parameters for batching, retries, parallelism, and auto-flush timing:
DataStreamerOptions options = DataStreamerOptions.builder()
.pageSize(1000)
.perPartitionParallelOperations(1)
.autoFlushInterval(1000)
.retryLimit(16)
.build();
var options = new DataStreamerOptions
{
PageSize = 1000,
RetryLimit = 8,
AutoFlushInterval = TimeSpan.FromSeconds(3)
};
-
pageSize
: Specifies the number of entries to process in each page or chunk of data. -
perPartitionParallelOperations
: Determines the number of parallel operations allowed on each partition. -
autoFlushInterval
: Defines the time interval (in milliseconds) after which the system automatically flushes any incomplete buffers. -
retryLimit
: Specifies the maximum number of retry attempts for a failed data submission before giving up.
Streaming Data
Before data is streamed to the cluster, each entry must be wrapped in an instance of the DataStreamerItem<T>
class. This wrapper allows you to perform PUT
and REMOVE
operations with data:
-
Use
DataStreamerItem.of(entry)
to insert new entries into the table. -
Use
DataStreamerItem.removed(entry)
to delete existing ones.
Wrapped data then can be passed to a publisher and streamed to the table.
The example below demonstrates how to use RecordView
, create a publisher, configure the data streamer, insert account records into the existing accounts
table and then delete them:
private static final int ACCOUNTS_COUNT = 10;
/* Assuming table Accounts exists */
public static void main(String[] arg) {
try (IgniteClient client = IgniteClient.builder()
.addresses("127.0.0.1:10800")
.build()) {
RecordView<Account> view = client.tables().table("Accounts").recordView(Account.class);
/* PUT entries into the table*/
streamAccountDataPut(view);
/* Verify that table contains these entries by reading them back */
verifyPut(view);
/* Remove entries from the table */
streamAccountDataRemove(view);
/* Check that table doesnt contain data */
verifyRemove(view);
}
}
/* Streaming data using DataStreamerOperationType#PUT operation */
private static void streamAccountDataPut(RecordView<Account> view) {
DataStreamerOptions options = DataStreamerOptions.builder()
.pageSize(1000)
.perPartitionParallelOperations(1)
.autoFlushInterval(1000)
.retryLimit(16)
.build();
CompletableFuture<Void> streamerFut;
try (var publisher = new SubmissionPublisher<DataStreamerItem<Account>>()) {
streamerFut = view.streamData(publisher, options);
ThreadLocalRandom rnd = ThreadLocalRandom.current();
for (int i = 0; i < ACCOUNTS_COUNT; i++) {
Account entry = new Account(i, "name" + i, rnd.nextLong(100_000), rnd.nextBoolean());
publisher.submit(DataStreamerItem.of(entry));
}
}
streamerFut.join();
}
/* Streaming data using DataStreamerOperationType#REMOVE operation */
private static void streamAccountDataRemove(RecordView<Account> view) {
DataStreamerOptions options = DataStreamerOptions.builder()
.pageSize(1000)
.perPartitionParallelOperations(1)
.autoFlushInterval(1000)
.retryLimit(16)
.build();
CompletableFuture<Void> streamerFut;
try (var publisher = new SubmissionPublisher<DataStreamerItem<Account>>()) {
streamerFut = view.streamData(publisher, options);
for (int i = 0; i < ACCOUNTS_COUNT; i++) {
Account entry = new Account(i);
publisher.submit(DataStreamerItem.removed(entry));
}
}
streamerFut.join();
}
private static void verifyPut(RecordView view) {
System.out.println("=== Table data after PUT ===");
for (int i = 0; i < ACCOUNTS_COUNT; i++) {
Account keyRec = new Account(i);
if (view.contains(null, keyRec)) {
Account record = (Account) view.get(null, keyRec);
System.out.printf("Found: id=%d, name=%s, balance=%d, active=%b%n",
record.getId(), record.getName(), record.getBalance(), record.isActive());
} else {
System.out.printf("Missing id=%d%n", i);
}
}
}
private static void verifyRemove(RecordView<Account> view) {
System.out.println("=== Table data after REMOVE ===");
List<Account> keys = IntStream.range(0, ACCOUNTS_COUNT)
.mapToObj(Account::new)
.collect(Collectors.toList());
List<Account> records = view.getAll(null, keys);
for (int i = 0; i < records.size(); i++) {
System.out.printf("id=%d exists? %b%n", i, records.get(i) != null);
}
}
using Apache.Ignite;
using Apache.Ignite.Table;
using var client = await IgniteClient.StartAsync(new("localhost"));
ITable? table = await client.Tables.GetTableAsync("accounts");
IRecordView<Account> view = table!.GetRecordView<Account>();
var options = new DataStreamerOptions
{
PageSize = 10_000,
AutoFlushInterval = TimeSpan.FromSeconds(1),
RetryLimit = 32
};
await view.StreamDataAsync(GetAccountsToAdd(5_000), options);
await view.StreamDataAsync(GetAccountsToRemove(1_000), options);
async IAsyncEnumerable<DataStreamerItem<Account>> GetAccountsToAdd(int count)
{
for (int i = 0; i < count; i++)
{
yield return DataStreamerItem.Create(
new Account(i, $"Account {i}"));
}
}
async IAsyncEnumerable<DataStreamerItem<Account>> GetAccountsToRemove(int count)
{
for (int i = 0; i < count; i++)
{
yield return DataStreamerItem.Create(
new Account(i, string.Empty), DataStreamerOperationType.Remove);
}
}
public record Account(int Id, string Name);
Streaming with Receiver
The GridGain 9 streaming API supports advanced streaming scenarios by allowing you to create a custom receiver that defines server-side processing logic. Use a receiver when you need to process or transform data on the server, update multiple tables from a single data stream, or work with incoming data that does not match a table schema.
With a receiver, you can stream data in any format, as it is schema-agnostic.
The receiver also has access to the full GridGain 9 API through the DataStreamerReceiverContext
.
The data streamer controls data flow by requesting items only when partition buffers have space. DataStreamerOptions.perPartitionParallelOperations
controls how many buffers can be allocated per partition. When buffers are full, the streamer stops requesting more data until some items are processed.
Additionaly, if a resultSubscriber
is specified, it also applies backpressure on the streamer. If the subscriber is slow at consuming results, the streamer reduces its request rate from the publisher accordingly.
To use a receiver, you need to implement the DataStreamerReceiver
interface. The receiver’s receive
method processes each batch of items streamed to the server, so you can apply custom logic and return results for each item as needed:
@Override
public CompletableFuture<List<Tuple>> receive(List<Tuple> page, DataStreamerReceiverContext ctx, Void arg) {
RecordView<Tuple> customersTable = ctx.ignite().tables().table("Customers").recordView();
RecordView<Tuple> addressesTable = ctx.ignite().tables().table("Addresses").recordView();
List<Tuple> results = new ArrayList<>(page.size());
for (Tuple sourceItem : page) {
/* For each source item, receiver extracts customer and address data and upserts it into respective tables */
Tuple customer = Tuple.create()
.set("id", sourceItem.intValue("customerId"))
.set("name", sourceItem.stringValue("customerName"))
.set("addressId", sourceItem.intValue("addressId"));
Tuple address = Tuple.create()
.set("id", sourceItem.intValue("addressId"))
.set("street", sourceItem.stringValue("street"))
.set("city", sourceItem.stringValue("city"));
customersTable.upsert(null, customer);
addressesTable.upsert(null, address);
}
return CompletableFuture.completedFuture(results);
}
ValueTask<IList<TResult>?> ReceiveAsync(
IList<TItem> page,
TArg arg,
IDataStreamerReceiverContext context,
CancellationToken cancellationToken);
-
page
: The current batch of data items to process. -
ctx
: The receiver context, which lets you interact with GridGain 9 API. -
arg
: An optional argument that can be used to pass custom parameters to your receiver logic.
Examples
Updating Multiple Tables
The following example demonstrates how to implement a receiver that processes data containing customer and address information, and updates two separate tables on the server:
-
First, create the custom receiver that will extract data from the provided source and write it into two separate tables:
customers
andaddresses
.public class TwoTableReceiver implements DataStreamerReceiver<Tuple, Void, Tuple> { public TwoTableReceiver() { } }
class TwoTableReceiver : IDataStreamerReceiver<IIgniteTuple, object?, object> { public async ValueTask<IList<object>?> ReceiveAsync( IList<IIgniteTuple> page, object? arg, IDataStreamerReceiverContext context, CancellationToken cancellationToken) { IRecordView<IIgniteTuple> customerTable = (await context.Ignite.Tables.GetTableAsync("customers"))!.RecordBinaryView; IRecordView<IIgniteTuple> addressesTable = (await context.Ignite.Tables.GetTableAsync("addresses"))!.RecordBinaryView; foreach (IIgniteTuple sourceItem in page) { // For each source item, the receiver extracts customer and address data and upserts it into respective tables. var customer = new IgniteTuple { ["id"] = sourceItem["customerId"], ["name"] = sourceItem["customerName"], ["addressId"] = sourceItem["addressId"] }; var address = new IgniteTuple { ["id"] = sourceItem["addressId"], ["street"] = sourceItem["street"], ["city"] = sourceItem["city"], }; await customerTable.UpsertAsync(null, customer); await addressesTable.UpsertAsync(null, address); } return null; } }
-
Create a descriptor that refers to your receiver implementation. This descriptor will be passed later to a
SubmissionPublisher
when streaming data.DataStreamerReceiverDescriptor<Tuple, Void, Tuple> desc = DataStreamerReceiverDescriptor .builder(TwoTableReceiver.class) .units(new DeploymentUnit(DEPLOYMENT_UNIT_NAME, DEPLOYMENT_UNIT_VERSION)) .build();
ReceiverDescriptor<IIgniteTuple, object?, object> desc = ReceiverDescriptor.Of(new TwoTableReceiver());
-
Next, obtain the target table to partition the data for streaming. In this example we partition by
customerId
to ensure the receiver is colocated with the customer data, enabling local upserts. Then define how to extract keys and payloads from the source, and stream the data using aSubmissionPublisher
.List<Tuple> sourceData = IntStream.range(1, 10) .mapToObj(i -> Tuple.create() .set("customerId", i) .set("customerName", "Customer " + i) .set("addressId", i) .set("street", "Street " + i) .set("city", "City " + i)) .collect(Collectors.toList()); CompletableFuture<Void> streamerFut; RecordView<Tuple> customersTableView = client.tables().table("Customers").recordView(); /* Extract the target table key from each source item; since the source has "customerId" but the target table uses "id", the function maps customerId to id accordingly */ Function<Tuple, Tuple> keyFunc = sourceItem -> Tuple.create().set("id", sourceItem.intValue("customerId")); /* Extract the data payload sent to the receiver. In this case, we use the entire source item as the payload */ Function<Tuple, Tuple> payloadFunc = Function.identity(); /* Stream data using a publisher */ try (var publisher = new SubmissionPublisher<Tuple>()) { streamerFut = customersTableView.streamData( publisher, desc, keyFunc, payloadFunc, null, /* Optional receiver arguments */ null, /* Result subscriber */ null /* Options */ ); for (Tuple item : sourceData) { publisher.submit(item); } } streamerFut.join();
IAsyncEnumerable<IIgniteTuple> sourceData = GetSourceData(); IRecordView<IIgniteTuple> customersTable = (await client.Tables.GetTableAsync("customers"))!.RecordBinaryView; IAsyncEnumerable<object> streamerResults = customersTable.StreamDataAsync( sourceData, desc, x => new IgniteTuple { ["id"] = x["customerId"] }, x => x, null, DataStreamerOptions.Default, CancellationToken.None); await foreach (object result in streamerResults) { // ... } static async IAsyncEnumerable<IIgniteTuple> GetSourceData() { await Task.Yield(); // Simulate async enumeration. for (int i = 0; i < 10; i++) { yield return new IgniteTuple { ["customerId"] = i, ["customerName"] = $"Customer {i}", ["addressId"] = i, ["street"] = $"Street {i}", ["city"] = $"City {i}" }; } }
Distributed Computations
You can also use a streamer with a receiver to perform distributed computations, such as per-item calculations and map-reduce tasks on the returned results.
This example demonstrates a simulated fraud detection process, which typically involves intensive processing of each transaction using ML models.
-
First, create a custom receiver that will handle fraud detection computations on the results:
private static class FraudDetectorReceiver implements DataStreamerReceiver<Tuple, Void, Tuple> { @Override public CompletableFuture<List<Tuple>> receive(List<Tuple> page, DataStreamerReceiverContext ctx, Void arg) { List<Tuple> results = new ArrayList<>(page.size()); for (Tuple tx : page) { results.add(detectFraud(tx)); } return CompletableFuture.completedFuture(results); } private static Tuple detectFraud(Tuple txInfo) { /* Simulate fraud detection processing */ double fraudRisk = Math.random(); /* Add result to the tuple and return */ return txInfo.set("fraudRisk", fraudRisk); } }
class FraudDetectorReceiver : IDataStreamerReceiver<IIgniteTuple, object?, IIgniteTuple> { public async ValueTask<IList<IIgniteTuple>?> ReceiveAsync( IList<IIgniteTuple> page, object? arg, IDataStreamerReceiverContext context, CancellationToken cancellationToken) { var result = new List<IIgniteTuple>(page.Count); foreach (var tx in page) { IIgniteTuple resTuple = await DetectFraud(tx); result.Add(resTuple); } return result; } private static async Task<IIgniteTuple> DetectFraud(IIgniteTuple transaction) { // Simulate fraud detection logic - add a random risk score to the tuple. await Task.Delay(10); transaction["fraudRisk"] = Random.Shared.NextDouble(); return transaction; } }
-
Next, stream a list of sample transactions across the cluster using a dummy table that partitions data by transaction ID and
FraudDetectorReceiver
for fraud detection. Subscribe to the results to log each processed transaction, handle errors, and confirm when streaming completes:List<Tuple> sourceData = IntStream.range(1, 10) .mapToObj(i -> Tuple.create() .set("txId", i) .set("txData", "{some-json-data}")) .collect(Collectors.toList()); DataStreamerReceiverDescriptor<Tuple, Void, Tuple> desc = DataStreamerReceiverDescriptor .builder(FraudDetectorReceiver.class) .build(); CompletableFuture<Void> streamerFut; TableDefinition txDummyTableDef = TableDefinition.builder("tx_dummy") .columns(column("id", ColumnType.INTEGER)) .primaryKey("id") .build(); Table dummyTable = client.catalog().createTable(txDummyTableDef); Function<Tuple, Tuple> keyFunc = sourceItem -> Tuple.create().set("id", sourceItem.value("txId")); /* Payload function is used to extract the payload (data that goes to the receiver) from the source item. /* In our case, we want to use the whole source item as the payload */ Function<Tuple, Tuple> payloadFunc = Function.identity(); Flow.Subscriber<Tuple> resultSubscriber = new Flow.Subscriber<>() { @Override public void onSubscribe(Flow.Subscription subscription) { subscription.request(Long.MAX_VALUE); } @Override public void onNext(Tuple item) { System.out.println("Transaction processed: " + item); } @Override public void onError(Throwable throwable) { System.err.println("Error during streaming: " + throwable.getMessage()); } @Override public void onComplete() { System.out.println("Streaming completed."); } }; try (var publisher = new SubmissionPublisher<Tuple>()) { streamerFut = dummyTable.recordView().streamData( publisher, desc, keyFunc, payloadFunc, null, resultSubscriber, null ); for (Tuple item : sourceData) { publisher.submit(item); } } streamerFut.join();
// Source data is a list of financial transactions. // We want to distribute this processing across the cluster, then gather and return results IAsyncEnumerable<IIgniteTuple> data = GetSourceData(); ReceiverDescriptor<IIgniteTuple, object?, IIgniteTuple> fraudDetectorReceiverDesc = ReceiverDescriptor.Of(new FraudDetectorReceiver()); // Streaming requires a target table to partition data. // Use a dummy table for this scenario, because we are not going to store any data. await client.Sql.ExecuteScriptAsync("CREATE TABLE IF NOT EXISTS TX_DUMMY (ID LONG)"); ITable dummyTable = await client.Tables.GetTableAsync("TX_DUMMY"); // Source data has "txId" field, but target dummy table has "id" column, so keyFunc maps "txId" to "id". Func<IIgniteTuple, IIgniteTuple> keyFunc = tuple => new IgniteTuple { ["id"] = tuple["txId"] }; // Payload function is used to extract the payload (data that goes to the receiver) from the source item. // In our case, we want to use the whole source item as the payload. Func<IIgniteTuple, IIgniteTuple> payloadFunc = tuple => tuple; IAsyncEnumerable<IIgniteTuple> results = dummyTable.RecordBinaryView.StreamDataAsync( data, fraudDetectorReceiverDesc, keyFunc, payloadFunc, receiverArg: null); await foreach (IIgniteTuple processedTx in results) { Console.WriteLine("Transaction processed: " + processedTx); } async IAsyncEnumerable<IIgniteTuple> GetSourceData() { await Task.Yield(); // Simulate async data source. for (int i = 0; i < 1000; i++) { yield return new IgniteTuple { ["txId"] = i, ["txData"] = "{some-json-data}" }; } }
Custom Marshallers in .NET
In .NET, you can define custom marshallers by implementing the IMarshaller
interface.
For example, the code below demonstrates how to use JsonMarshaller
to serialize data, arguments, and results.
ITable? table = await client.Tables.GetTableAsync("my-table");
ReceiverDescriptor<MyData, MyArg, MyResult> receiverDesc = ReceiverDescriptor.Of(new MyReceiver());
IAsyncEnumerable<MyData> data = Enumerable
.Range(1, 100)
.Select(x => new MyData(x, $"Name {x}"))
.ToAsyncEnumerable();
IAsyncEnumerable<MyResult> results = table!.RecordBinaryView.StreamDataAsync(
data: data,
receiver: receiverDesc,
keySelector: dataItem => new IgniteTuple { ["id"] = dataItem.Id },
payloadSelector: dataItem => dataItem,
receiverArg: new MyArg("Some info"));
await foreach (MyResult result in results)
{
Console.WriteLine(result);
}
public record MyData(int Id, string Name);
public record MyArg(string Info);
public record MyResult(MyData Data, MyArg Arg);
public class MyReceiver : IDataStreamerReceiver<MyData, MyArg, MyResult>
{
public IMarshaller<MyData> PayloadMarshaller =>
new JsonMarshaller<MyData>();
public IMarshaller<MyArg> ArgumentMarshaller =>
new JsonMarshaller<MyArg>();
public IMarshaller<MyResult> ResultMarshaller =>
new JsonMarshaller<MyResult>();
public ValueTask<IList<MyResult>?> ReceiveAsync(IList<MyData> page, MyArg arg, IDataStreamerReceiverContext context, CancellationToken cancellationToken)
{
IList<MyResult> results = page
.Select(data => new MyResult(data, arg))
.ToList();
return ValueTask.FromResult(results)!;
}
}
Tracking Failed Entries
If the data streamer fails to process any entries, it collects the failed items in a DataStreamerException
. You can catch this exception and access the failed entries using the failedItems()
method, as shown in the example below.
You can catch both asynchronous errors during background streaming and immediate submission errors:
RecordView<Account> view = client.tables()
.table("Accounts")
.recordView(Account.class);
SubmissionPublisher<DataStreamerItem<Account>> publisher = new SubmissionPublisher<>();
CompletableFuture<Void> streamerFut = view.streamData(publisher, options);
ThreadLocalRandom rnd = ThreadLocalRandom.current();
/* Wrap our stream in a publisher and attach failure handlers */
try (publisher) {
view.streamData(publisher, options)
.exceptionally(e -> {
/* Asynchronous failures during background streaming */
Throwable cause = e.getCause();
if (cause instanceof DataStreamerException) {
System.out.println("Failed items during background streaming: " +
((DataStreamerException) cause).failedItems());
} else {
System.out.println("Streaming error: " + cause.getMessage());
}
return null;
});
/* Publish entries */
for (int i = 0; i < ACCOUNTS_COUNT; i++) {
Account entry = new Account(
i,
"Account " + i,
rnd.nextLong(100_000),
rnd.nextBoolean()
);
publisher.submit(DataStreamerItem.of(entry));
}
} catch (DataStreamerException e) {
/* Immediate failures during submission */
System.out.println("Failed items during submission: " + e.failedItems());
}
/* Wait for background streaming to complete */
streamerFut.join();
ITable? table = await Client.Tables.GetTableAsync("my-table");
IRecordView<IIgniteTuple> view = table!.RecordBinaryView;
IList<IIgniteTuple> data = [new IgniteTuple { ["key"] = 1L, ["val"] = "v" }];
try
{
await view.StreamDataAsync(data.ToAsyncEnumerable());
}
catch (DataStreamerException e)
{
Console.WriteLine("Failed items: " + string.Join(",", e.FailedItems));
}
Tuning Memory Usage
Data streamer may require significant amount of memory to handle the requests in orderly manner. Depending on your environment, you may want to increase or reduce the amount of memory reserved by the data streamer.
For every node in the cluster, the streamer reserves an amount of memory equal to pageSize
(1000 entries by default) multiplied by perPartitionParallelOperations
(1 by default) setting. For example, a 10-partition table with default parameters and average entry size of 1KB will reserve 10MB for operations.
You can change these options while creating a DataStreamerOptions
object:
DataStreamerOptions options = DataStreamerOptions.builder()
.pageSize(1000)
.perPartitionParallelOperations(1)
.autoFlushInterval(1000)
.retryLimit(16)
.build();
// .NET streamer does not have a perNodeParallelOperations option yet.
var options = new DataStreamerOptions
{
PageSize = 10_000
};
Additionally, the data streamer periodically flushes incomplete buffers to ensure that messages are not delayed indefinitely. This is especially useful when a buffer fills slowly or never completely fills due to uneven data distribution.
This behavior is controlled by the autoFlushInterval
property, which is set to 5000 ms by default. You can also configure the retryLimit
parameter to define the maximum number of retry attempts for failed submissions, with a default value of 16.
© 2025 GridGain Systems, Inc. All Rights Reserved. Privacy Policy | Legal Notices. GridGain® is a registered trademark of GridGain Systems, Inc.
Apache, Apache Ignite, the Apache feather and the Apache Ignite logo are either registered trademarks or trademarks of The Apache Software Foundation.
